Product Overview

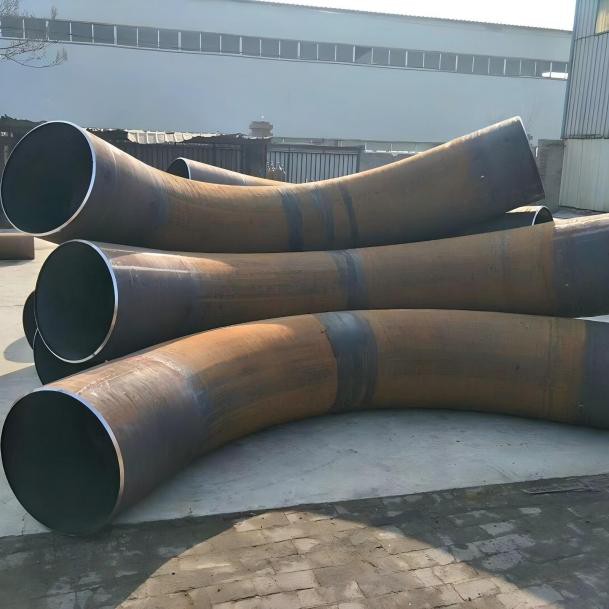

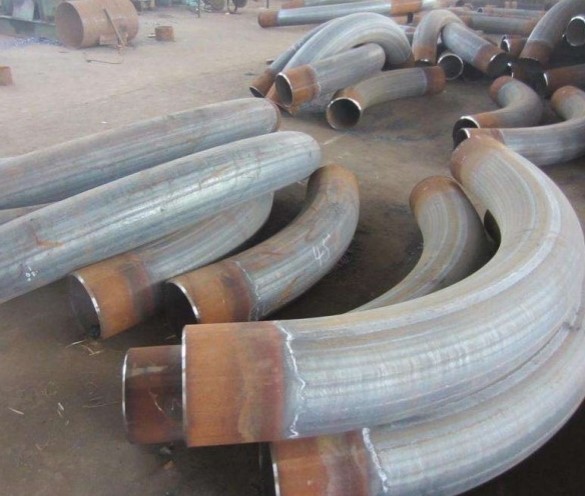

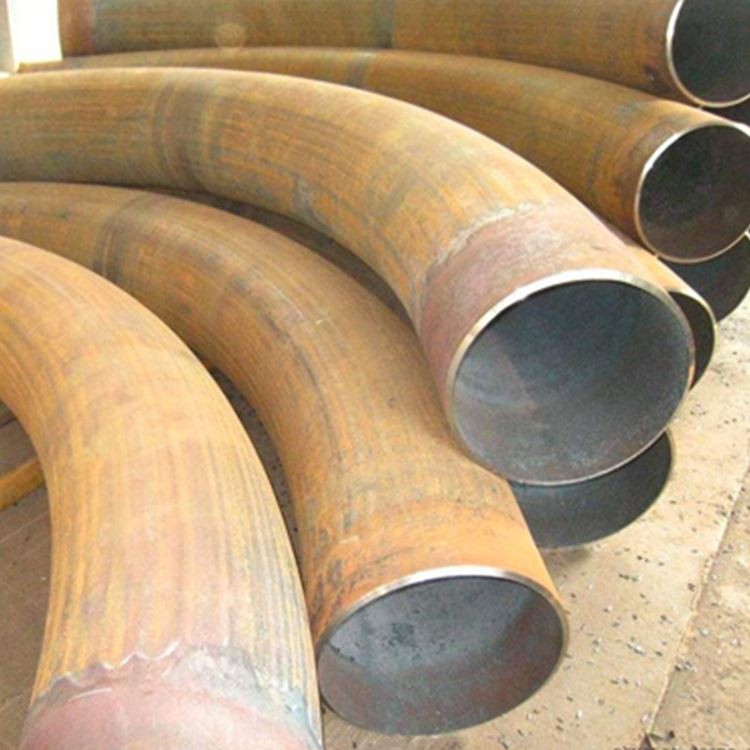

Pipeline steel pipe bends are produced via clean steel smelting technology, with precise control of carbon equivalent and crack sensitivity index to guarantee the stable performance of the base material. Hot-bent bends are processed by medium-frequency induction heating and subsequent heat treatment, ensuring consistent performance with straight pipes, and their ovality and wall thickness indicators are superior to national standards. Cold-bent bends are formed at room temperature, retaining the mechanical properties of the parent pipe and suitable for on-site minor angle adjustment. Pipeline steel pipe bends have been applied in key projects such as the West-to-East Gas Transmission, meeting the low-temperature requirement of -45℃, and are suitable for high-demand fields like long-distance transmission pipelines and marine pipelines.
Parameter
|
PSL |
Delivery Condition |
Pipe Grade/Steel Grade |
|
PSL 1 |
As-rolled, normalizing rolled, normalized, or normalizing formed |
L175 or A25L175P or A25PL210 or A |
|
PSL 1 |
As-rolled, normalizing rolled, thermomechanical rolled, thermomechanical formed, normalizing formed, normalized, normalized and tempered; or, if agreed, quenched and tempered for SMLS pipe only |
L245 or B |
|
PSL 1 |
As-rolled, normalizing rolled, thermomechanical rolled, thermomechanical formed, normalizing formed, normalized, normalized and tempered or quenched and tempered |
L290 or X42L320 or X46L360 or X52L390 or X56L415 or X60L450 or X65L485 or X70 |
|
PSL 2 |
As-rolled |
L245R or BRL290R or X42R |
|
PSL 2 |
Normalizing rolled, normalizing formed, normalized, or normalized and tempered |
L245N or BNL290N or X42NL320N or X46NL360N or X52NL390N or X56NL415N or X60N |
|
PSL 2 |
Quenched and tempered |
L245Q or BQL290Q or X42QL320Q or X46QL360Q or X52QL390Q or X56QL415Q or X60QL450Q or X65QL485Q or X70QL555Q or X80QL625Q or X90QL690Q or X100Q |
|
PSL 2 |
Thermomechanical rolled or thermomechanical formed |
L245M or BML290M or X42ML320M or X46ML360M or X52ML390M or X56ML415M or X60ML450M or X65ML485M or X70ML555M or X80M |
|
PSL 2 |
Thermomechanical rolled |
L625M or X90ML690M or X100ML830M or X120M |
LINE PIPE
PIPE GRADE AND STEEL GRADES,AND ACCEPTABLE DELIVERY CONDITIONS
| PSL | Delivery Condition | Pipe Grade/Steel Grade |
| PSL 1 | As-rolled,normalizing rolled,normalized,or normalizing formed | L175 or A25 |
| L175P or A25P | ||
| L210 or A | ||
| As-rolled,normalizing rolled,thermomechanical rolled,thermomechanical formed,normalizing formed,normalized,normalized and tempered;or,if agreed,quenched and tempered for SMLS pipe only | L245 or B | |
| As-rolled,normalizing rolled,thermomechanical rolled,thermomechanical formed,normalizing formed,normalized,normalized and tempered or quenched and tempered | L290 or X42 | |
| L320 or X46 | ||
| L360 or X52 | ||
| L390 or X56 | ||
| L415 or X60 | ||
| L450 or X65 | ||
| L485 or X70 | ||
| PSL 2 | As-rolled | L245R or BR |
| L290R or X42R | ||
| Normalizing rolled,normalizing formed,normalized,or normalized and tempered | L245N or BN | |
| L290N or X42N | ||
| L320N or X46N | ||
| L360N or X52N | ||
| L390N or X56N | ||
| L415N or X60N | ||
| Quenched and tempered | L245Q or BQ | |
| L290Q or X42Q | ||
| L320Q or X46Q | ||
| L360Q or X52Q | ||
| L390Q or X56Q | ||
| L415Q or X60Q | ||
| L450Q or X65Q | ||
| L485Q or X70Q | ||
| L555Q or X80Q | ||
| L625Q or X90Q | ||
| L690Q or X100Q | ||
| PSL 2 | Thermomechanical rolled or thermomechanical formed | L245M or BM |
| L290M or X42M | ||
| L320M or X46M | ||
| L360M or X52M | ||
| L390M or X56M | ||
| L415M or X60M | ||
| L450M or X65M | ||
| L485M or X70M | ||
| L555M or X80M | ||
| Thermomechanical rolled | L625M or X90M | |
| L690M or X100M | ||
| L830M or X120M |
Application Fields
Long-distance oil and gas pipelines
Pipeline steel pipe bends are applied in national key projects including the West-to-East Gas Transmission and China-Russia East Pipeline.
Urban gas pipeline networks
Adopted in urban pipeline projects such as Guizhou Natural Gas Network.
Shale gas development
Used in gathering and transportation systems of unconventional oil and gas fields like Fuling Shale Gas Field.
Marine and condensate pipelines
Pipeline steel pipe bends are applied in key pipeline projects of Kuwait National Petroleum Company.
Our Services
Pre-sales Technical Support
Provide professional product selection consultation and optimize bend configuration solutions based on actual working conditions.
01
Production Guarantee
Ensure on-time delivery of products as scheduled, and provide emergency production support for urgent order demands.
02
On-site Support
Cooperate with customers in on-site product acceptance and provide professional construction technical consultation.
03
After-sales Warranty
Offer free repair service for products within 12 months of delivery; provide maintenance services at actual cost beyond the warranty period.
04
