Product Overview

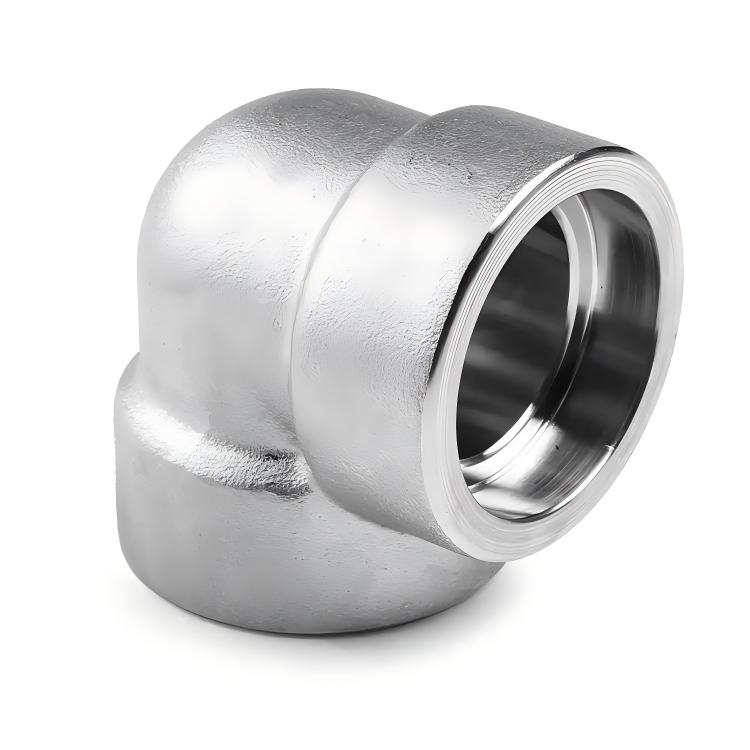

Socket welding elbows are one-piece die-forged high-pressure pipe fittings with uniform wall thickness. Socket design enables fillet welding installation and prevents weld slag from entering the pipeline, complying with GB/T14383 and ASME B16.11, with pressure ratings 3000LB-9000LB, applicable to chemical and power industry high-temperature and high-pressure pipelines.
Applications
1.Core Industries: Socket type elbow is applied in petroleum refining, chemical fertilizer, thermal power generation and shipbuilding.
2.Harsh Conditions: For pipelines conveying high-temperature & high-pressure, flammable, explosive or toxic media.
3.Key Areas:Socket type elbow is used at the connection of valves, pumps and main pipelines for easy later maintenance and disassembly.
Features
Structural Characteristics: 90° L-shaped/180° U-shaped, consistent two-end socket depth ensures pipe axial alignment.
Material Characteristics: Forged steel material with dense structure and higher strength than ordinary castings.
Process Features: Internal stop step limits pipe insertion depth to avoid welding penetration.
Technical Specifications
Angles: 45°, 90°, 180° (return bend).
Standards:Socket type elbows adapt to British A-series (Φ21.3-Φ114.3) and metric B-series (Φ18-Φ108).
Wall Thickness: SCH80(3000LB), SCH160(6000LB), XXS(9000LB).
ASME B16.11
Socket Welding Elbow
|
Type |
DN |
NPS |
SCH80/3000(kg) |
SCH160/6000(kg) |
XXS/9000(kg) |
|
90° |
6 |
1/8" |
0.09 |
0.15 |
- |
|
90° |
8 |
1/4" |
0.09 |
0.15 |
- |
|
90° |
10 |
3/8" |
0.12 |
0.32 |
- |
|
90° |
15 |
1/2" |
0.26 |
0.4 |
0.85 |
|
90° |
20 |
3/4" |
0.35 |
0.65 |
1.48 |
|
90° |
25 |
1" |
0.49 |
1.25 |
2.2 |
|
90° |
32 |
1-1/4" |
0.85 |
1.4 |
2.9 |
|
90° |
40 |
1-1/2" |
1.05 |
2.45 |
3.8 |
|
90° |
50 |
2" |
1.75 |
2.76 |
6.35 |
|
90° |
65 |
2-1/2" |
3.8 |
4.8 |
- |
|
90° |
80 |
3" |
5.2 |
8.85 |
- |
|
90° |
100 |
4" |
11 |
- |
- |
|
45° |
6 |
1/8" |
0.08 |
0.16 |
- |
|
45° |
8 |
1/4" |
0.08 |
0.16 |
- |
|
45° |
10 |
3/8" |
0.12 |
0.28 |
- |
|
45° |
15 |
1/2" |
0.22 |
0.3 |
0.78 |
|
45° |
20 |
3/4" |
0.28 |
0.59 |
1.25 |
|
45° |
25 |
1" |
0.43 |
0.9 |
1.85 |
|
45° |
32 |
1-1/4" |
0.65 |
1.15 |
2.62 |
|
45° |
40 |
1-1/2" |
0.79 |
2.02 |
3.45 |
|
45° |
50 |
2" |
1.25 |
2.3 |
5.8 |
|
45° |
65 |
2-1/2" |
3.6 |
4.2 |
- |
|
45° |
80 |
3" |
5.1 |
6.1 |
- |
|
45° |
100 |
4" |
9.5 |
- |
- |
